SPECIFICATIONS
FRAME:

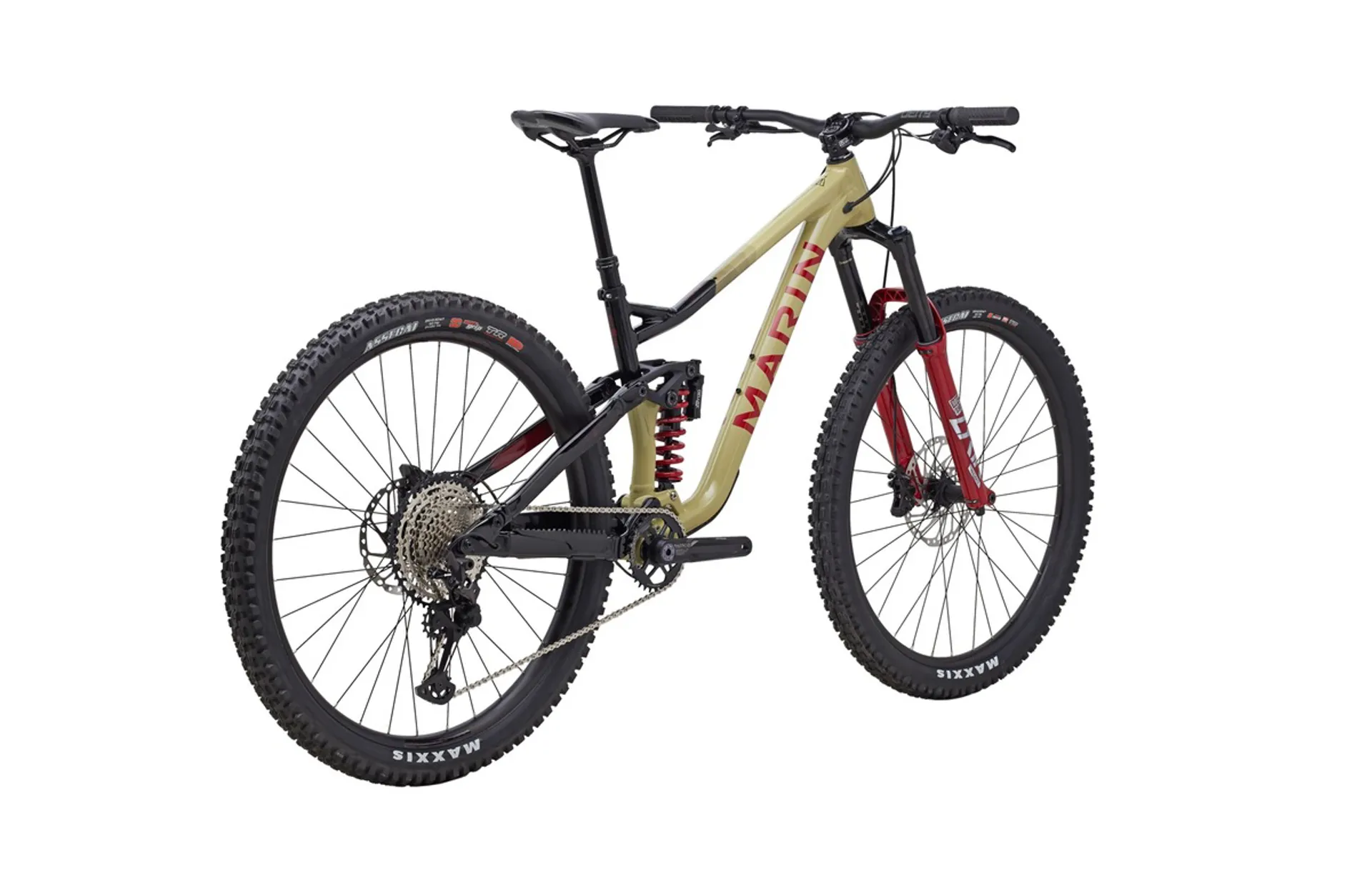

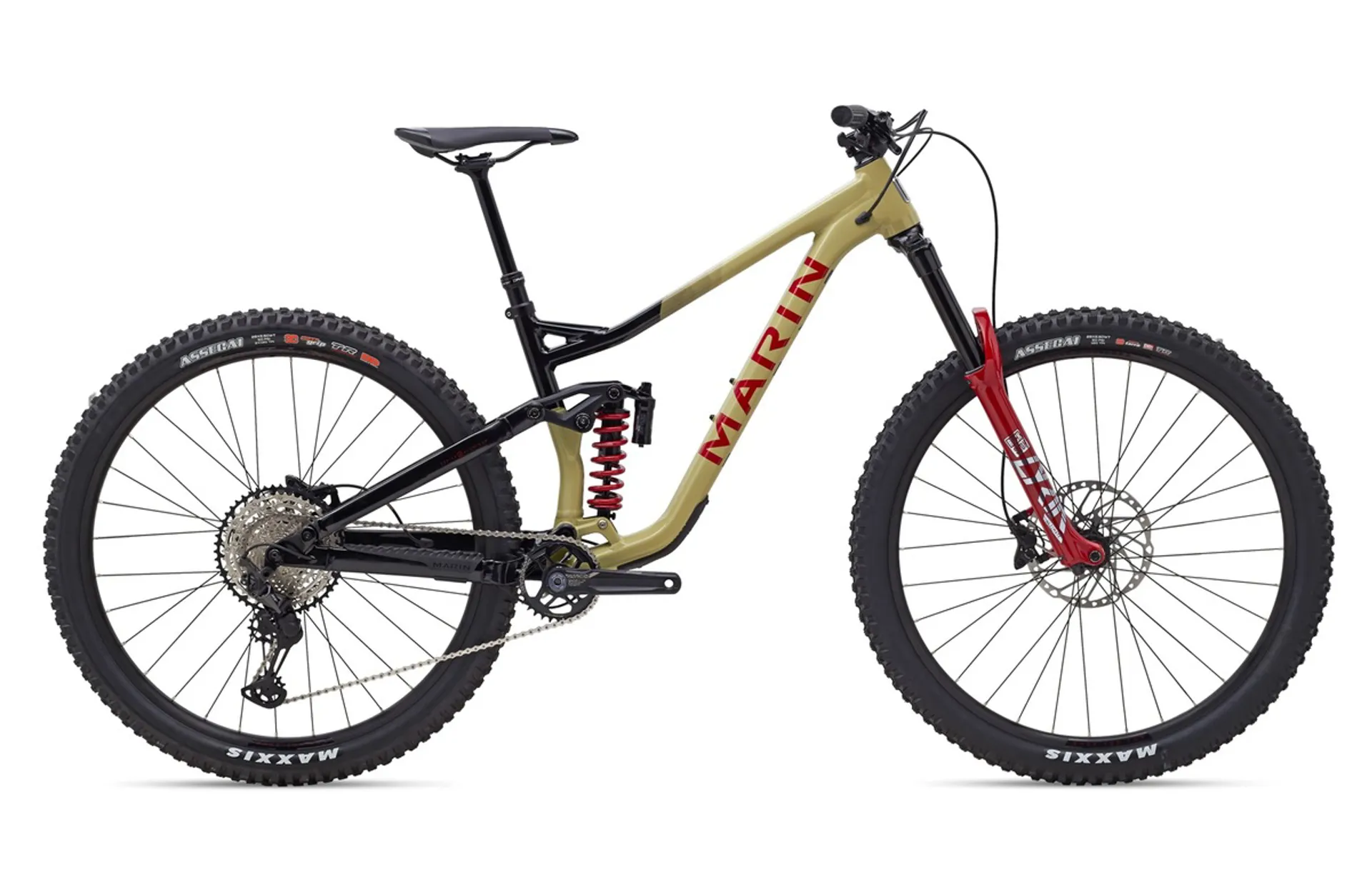

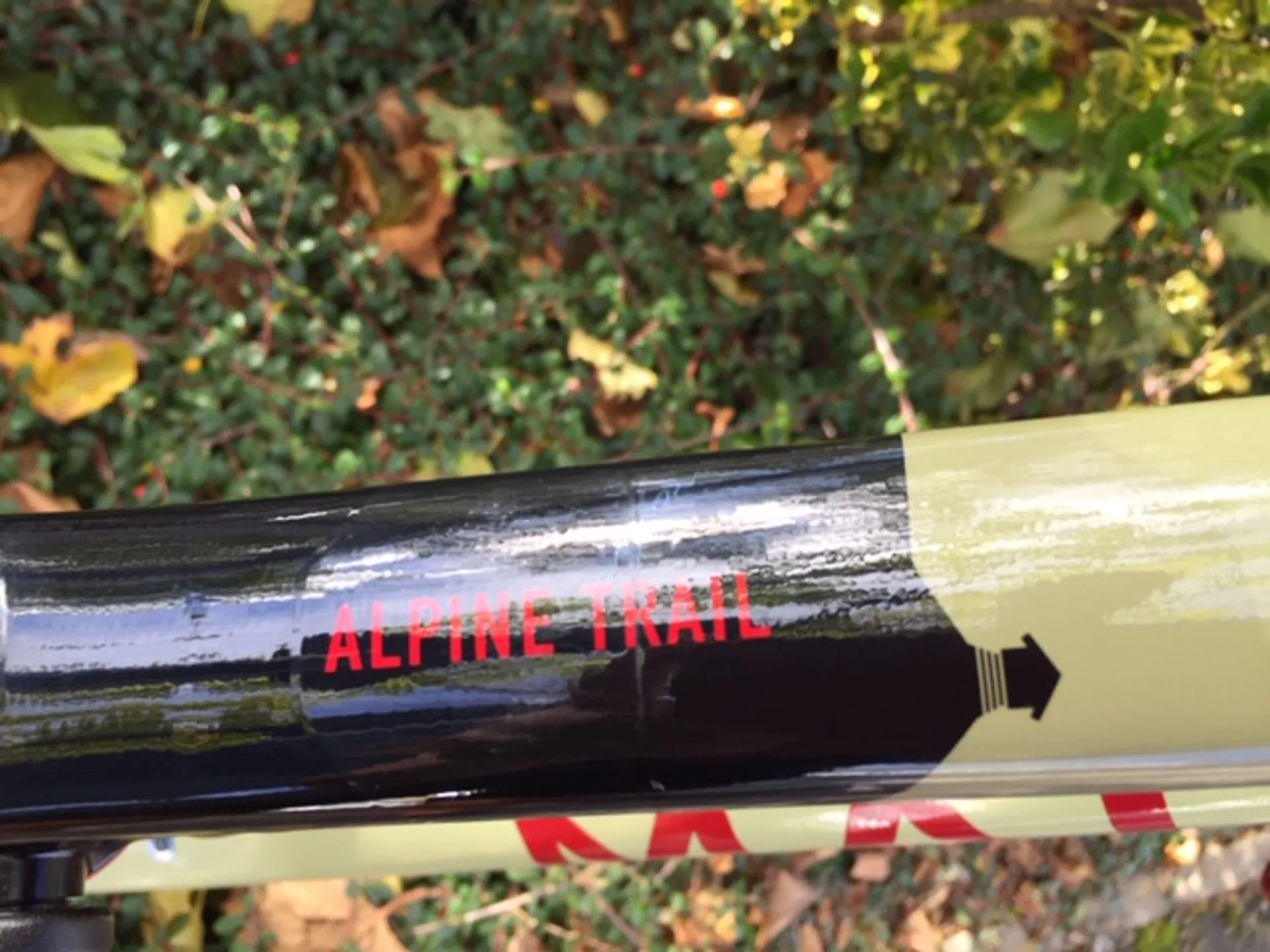

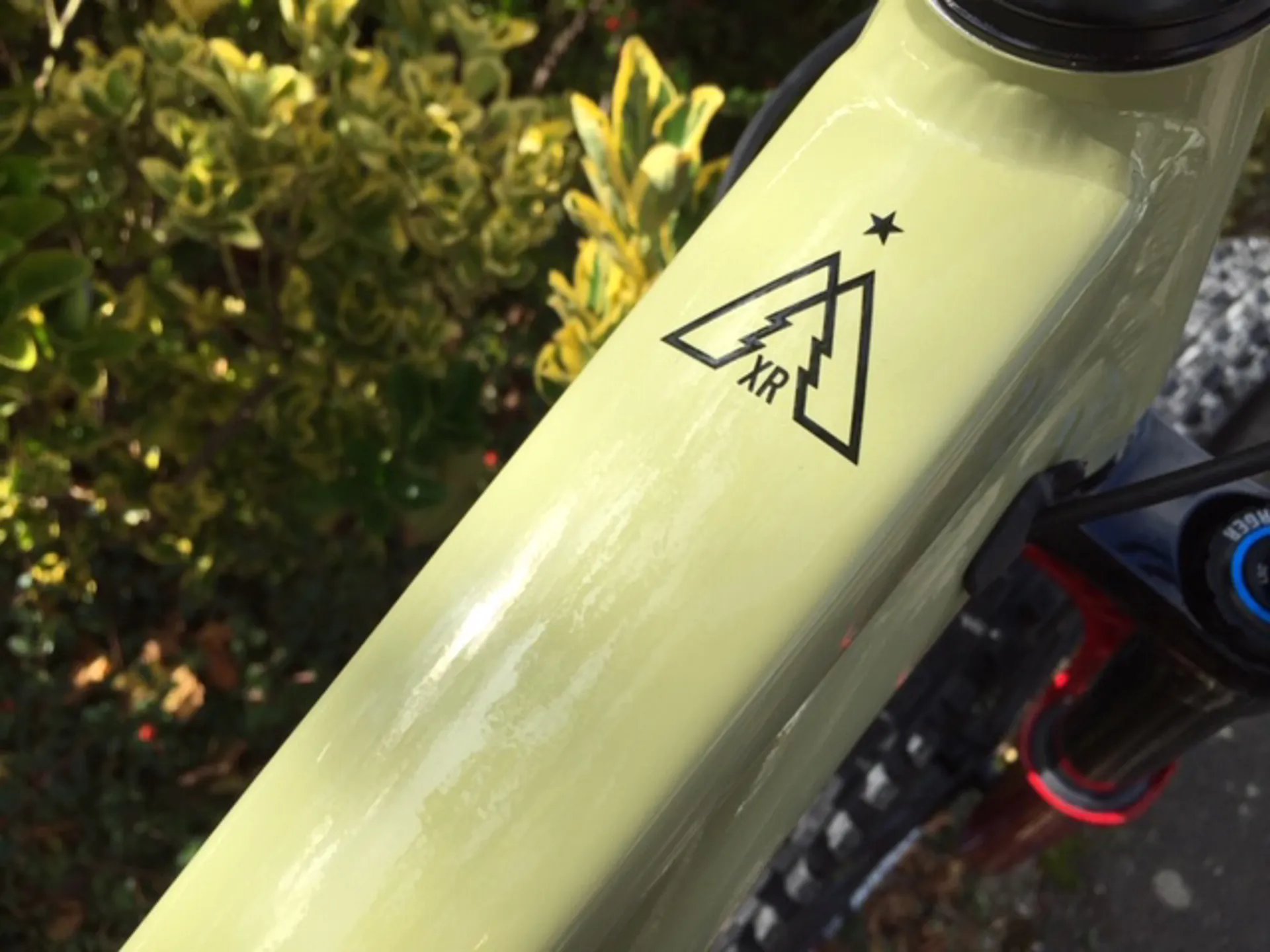

Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
FRONT SUSPENSION:

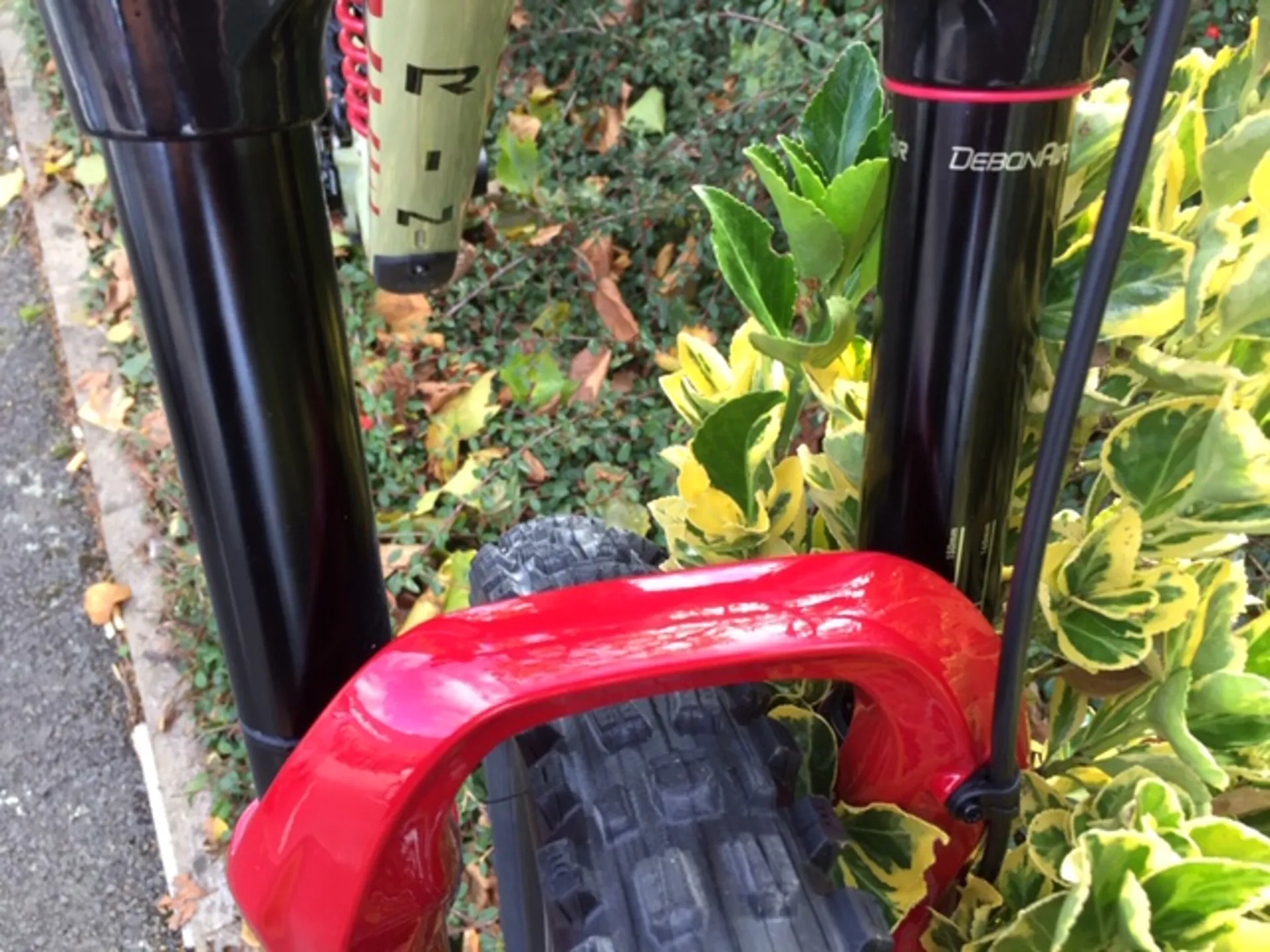

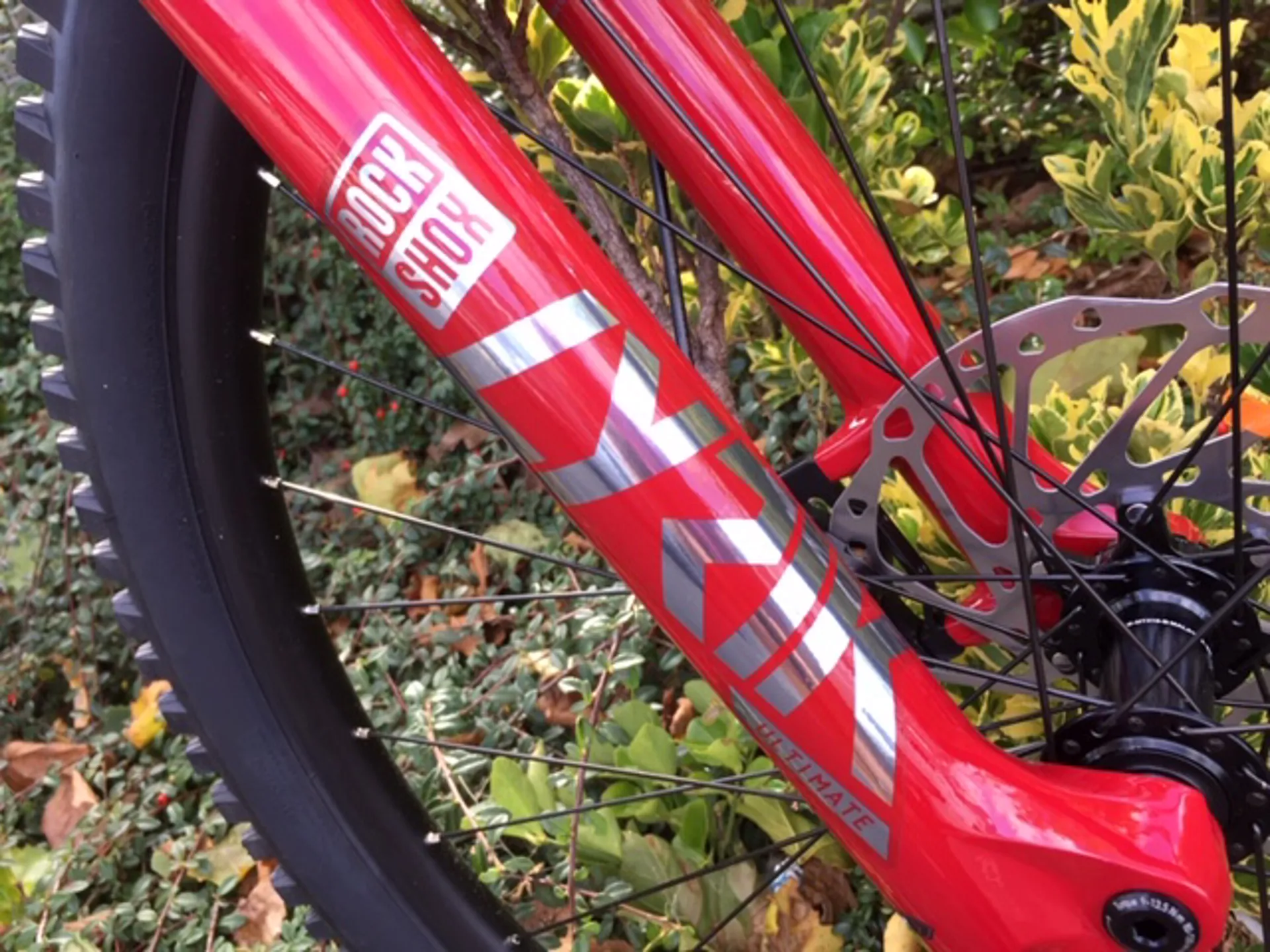

RockShox Lyric Ultimate, 29”, 160mm of Travel, Air Sprung, Debonair, Charger 2.1, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
REAR SUSPENSION:

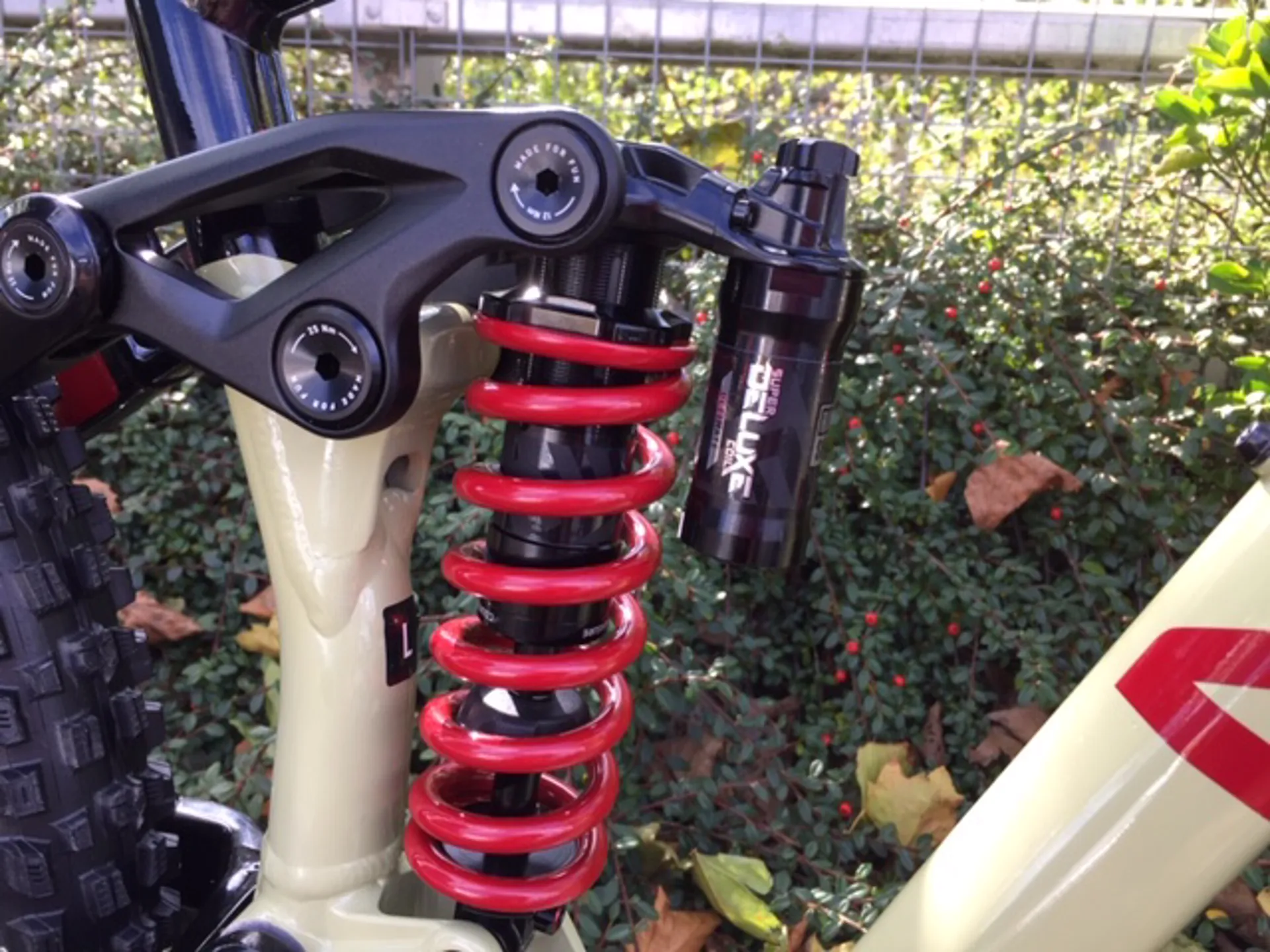

Rock Shox Super Deluxe Coil Ultimate RCT, Coil Spring, Climb Switch, LS Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount (S/M = 300lb, L/XL = 400lb)
RIMS:
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
HUB, REAR
Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body
HUB, FRONT
Shimano HF-MT410B, 110x15mm, Center\lock
SPOKE, NIPPLES
14g Black Stainless Steel
TIRES

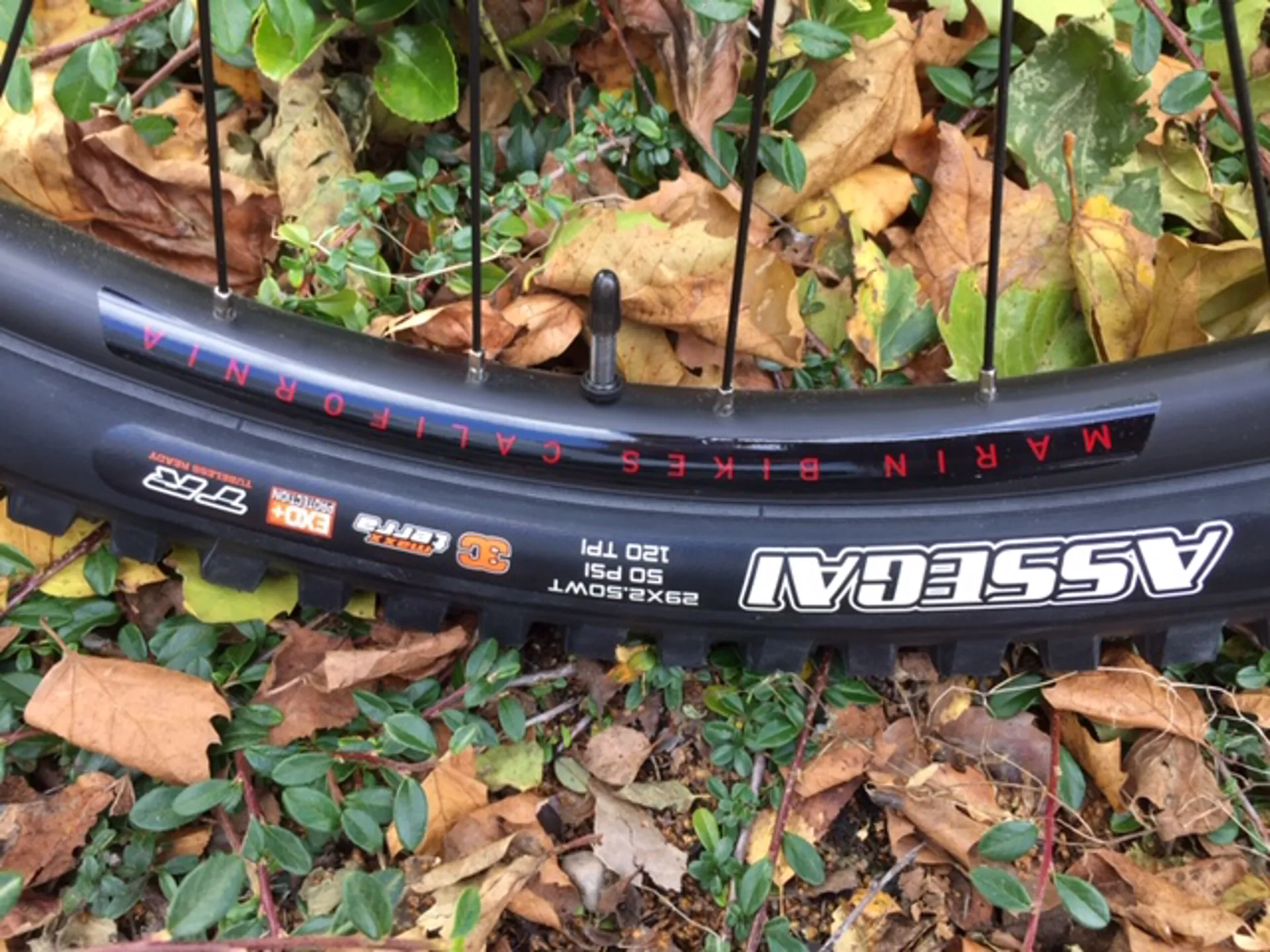

Front: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible
DERAILLEUR, REAR:
Shimano XT 12-Speed, SGS
DERAILLEUR, FRONT:
SHIFT LEVER
Shimano SLX 12-Speed, I-Spec EV
CRANKSET:
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
BOTTOM BRACKET:
MEGAEVO BB, 73mm BSA Threaded
CHAIN:
KMC X-12 Silver and Black
CASSETTE:
Shimano SLX M7100 Cassette, 12-Speed, 10-51T
BRAKE, FRONT:
Shimano MT420, 4-Piston Hydraulic Disc Brake, 203mm Rotor
BRAKE, REAR:
Shimano MT420, 4-Piston Hydraulic Disc Brake, 180mm Rotor
BRAKE LEVERS:
Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible
HANDLEBAR:

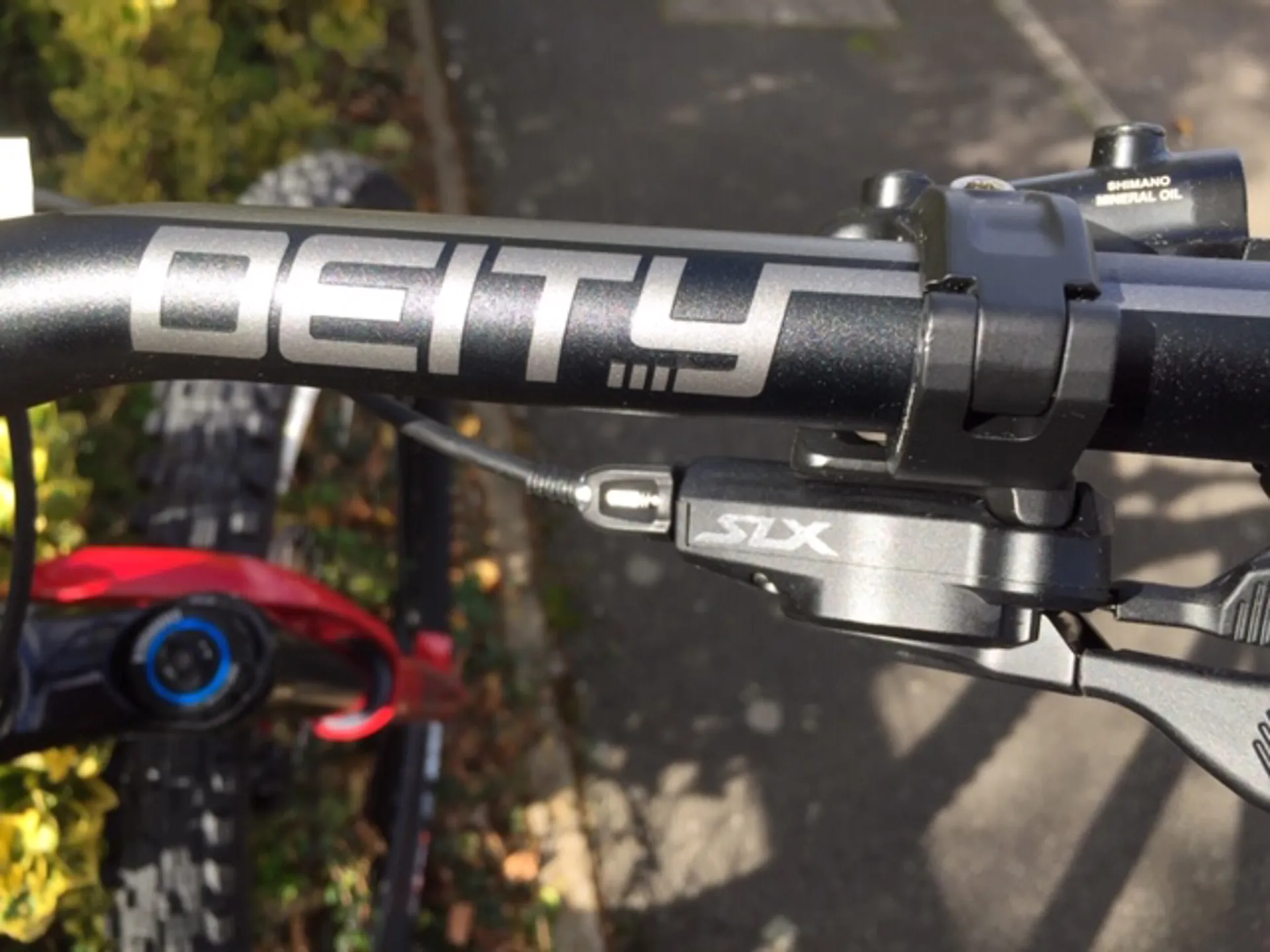

Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width
STEM:
Deity Copperhead 35mm, Black Ano
GRIPS:

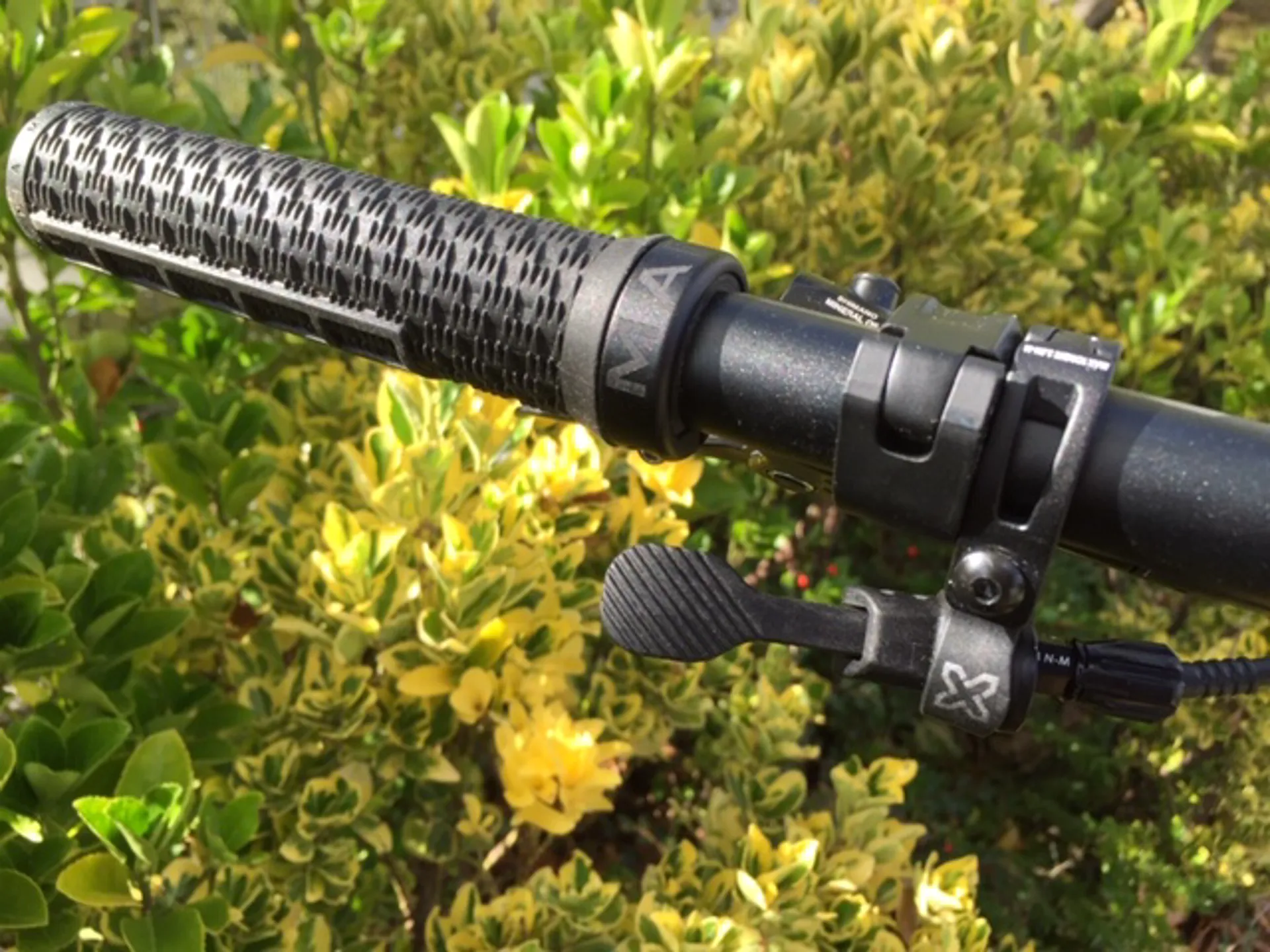

Marin Single Clamp Locking
HEADSET:
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SEATPOST:

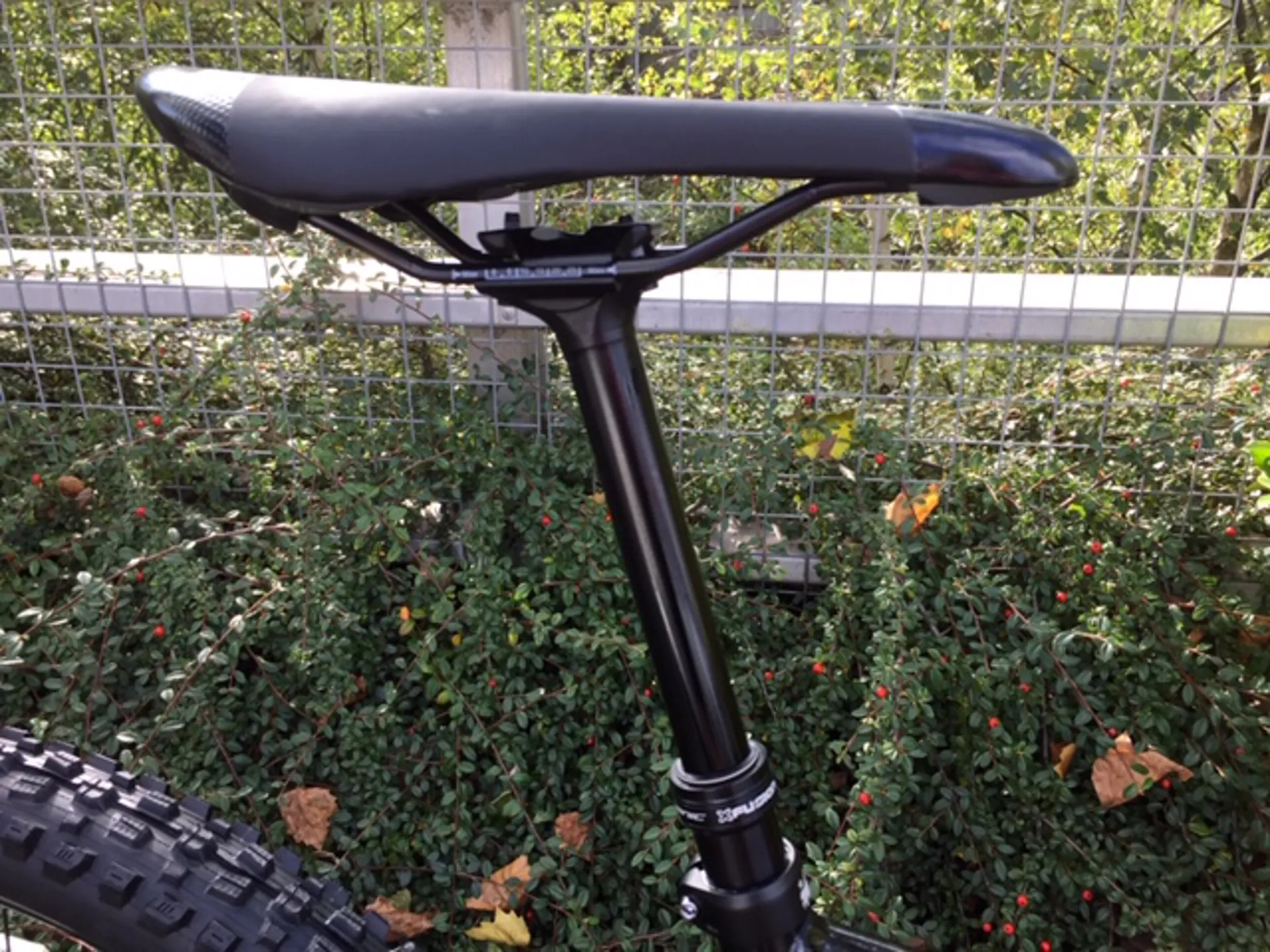

X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
SADDLE:
Marin Speed Concept
EXTRAS
Bolt-On Thru-Axle

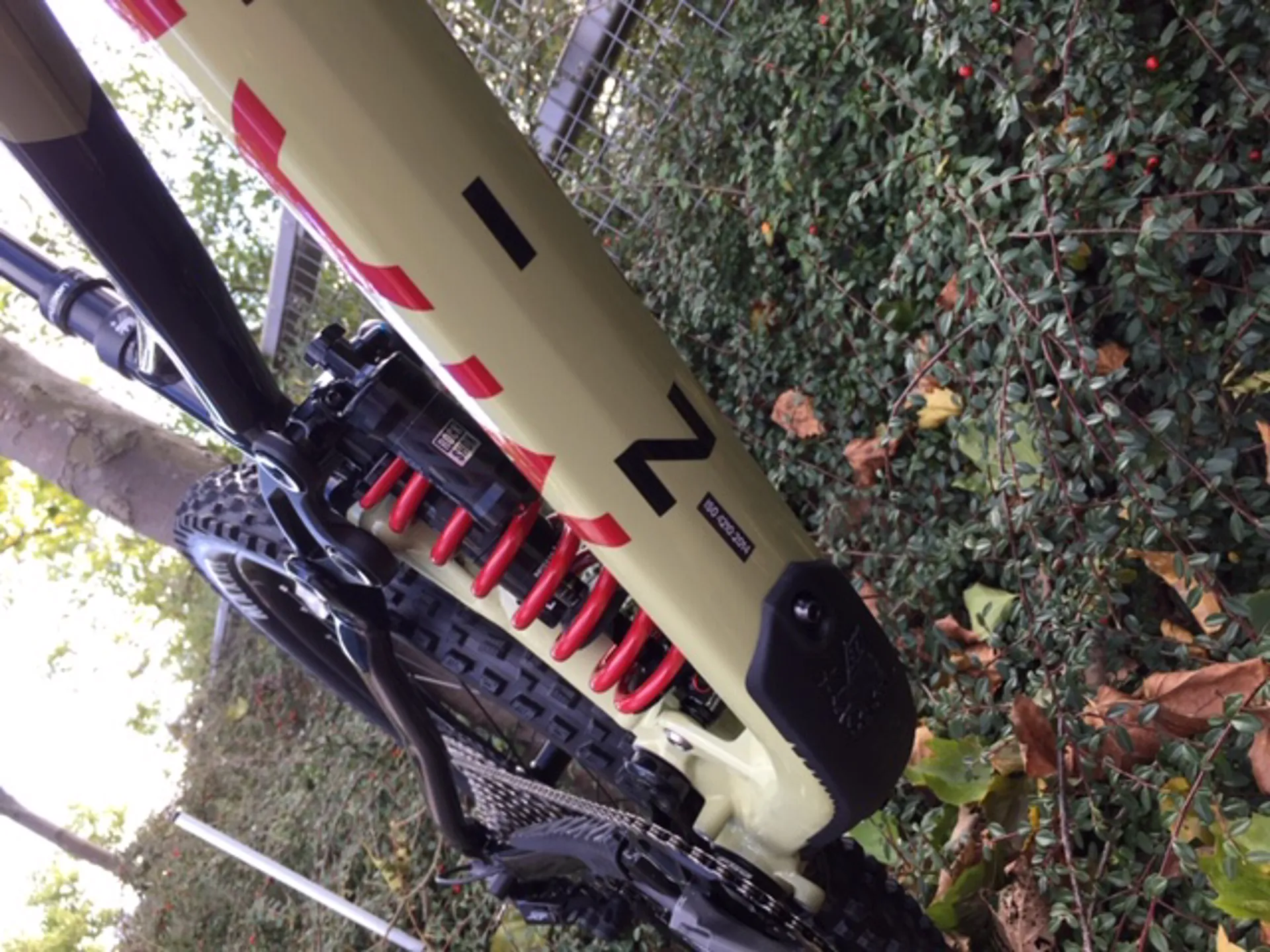

Downtube Protector
