**PRICE NOTICE** The price of this machine is still TBC - Please call the office for more information**
**SHIPPING NOTICE** This item is currently awaiting shipment from Italy. Due to the current situation with COVID & BREXIT and shipping costs, TARIFFS and taxes from Europe the expected date of 4 January 2021 has now moved. Please contact the office for further shipping updates.

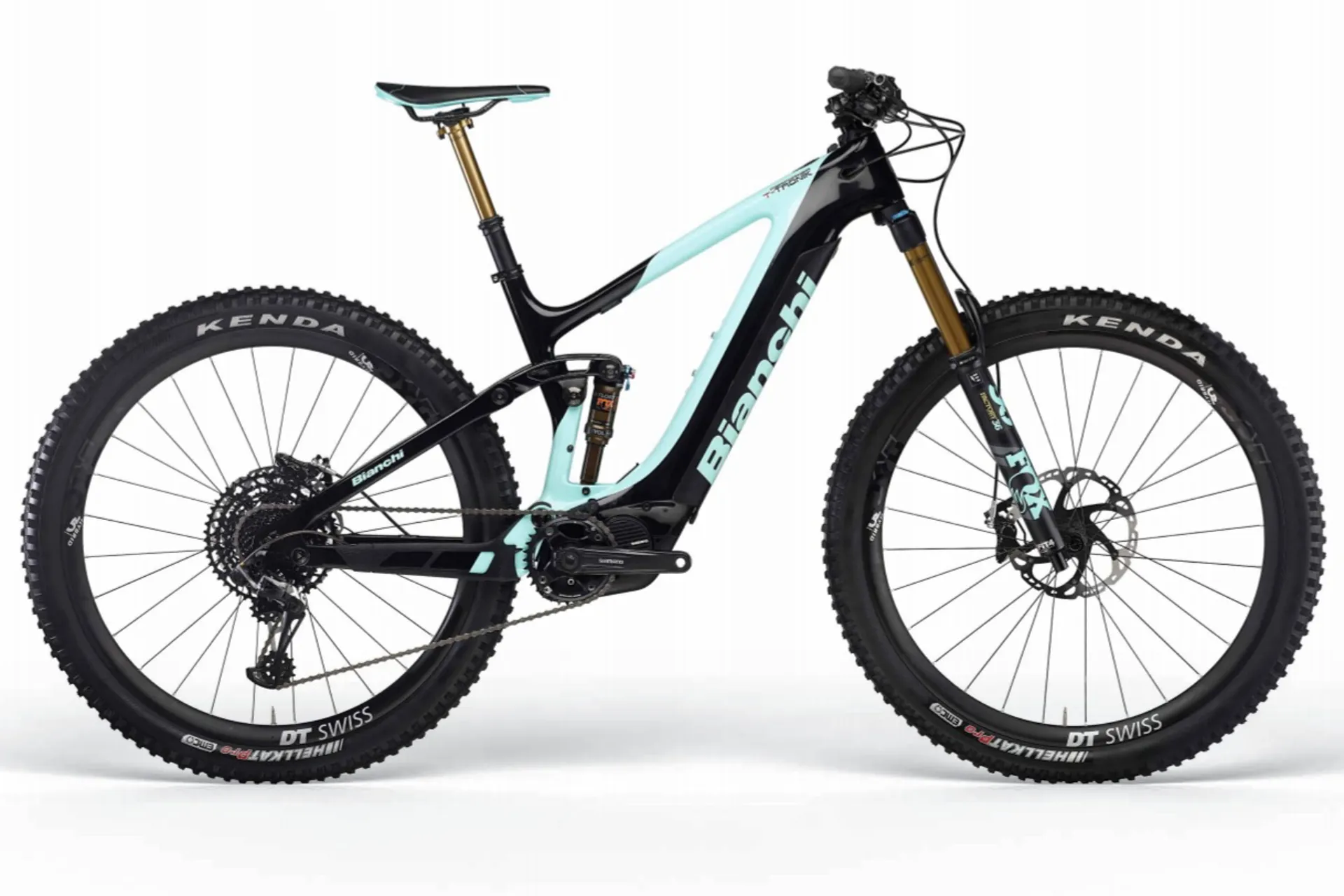

Aggressive trail e-mtb with a carbon frame, designed to climb steep mountains with total downhill control.
Key Features:
Carbon frame with Aluminium rear triangle.
Travel: 150/160mm front, 140mm rear.
Motor: Shimano Steps E8000 250W - 70 Nm
Battery: 630 Wh
Wheel Size: 29x2.6, compatible with 27.5x2.8
BB Height adjustability through a flip chip positioned on the shock rocker link.
Custom top cap w/top tube impact protection.
Internal cable routing.
Fox Live Valve system compatible.
1.5/1.5 ACR headset.
BOOST 12x148mm rear axle.
Charging time: Complete 5-6 hours.
Assistance Levels: 3 - Eco, Trail & boost
SPECIFICATIONS
Frame: T-Tronik Performer FS 140mm, Carbon front triangle, Alu rear triangle, 1.5" tapered HT, seatpost diam. 31.6mm, seat post clamp diam. 34.9mm, PM 160mm dropout thru axle 12 x 148mm, internal cable routing.
Rear Shock: Fox Float DPS Factory, Trunnion 185/50, LV, EVOL, 3 position lever
Seatpost Clamp: Alu, 35.4mm
Headset: FSA No. 55R/558 1.5"
Fork: Fox 36 Float 29" Factory, E-Bike Specific tuning, 160mm travel, Fit4 3 Pos. Lever w/micro adjuster, Kashima stanchions, 1.5" tapered HT, Kabolt 15x110mm BOOST axle.
Shifter: SRAM X01 Eagle 12 Speed trigger single click & discrete clamp.
Rear Derailleur: SRAM X01 Eagle 12 speed Long Cage.
Chain set: Shimano FC-E8000 Alu crank, length 165mm
Bottom Bracket: Incleded w/motot unit.
Chain: SRAM NX Eagle 12 Speed, 11-50T
Brake: Shimano BR-M8120, 4 Piston brakes, w/203mm front and rear adapter. resin pad.
Disc Rotor: Shimano RT-M800 Front & RT-M810 w/speed sensor magnet, diam. 203mm, Centre Lock.
Rim Wheelset: DT Swiss H1700 Spline 29" 30mm, thru axle front 15x110mm, rear 12x148mm, TL-Ready rims w/tubeless band and valve, straight pull spokes, Centre Lock.
Tyres: Kenda Hellkat 29x2.6, 60 tpi EMC, DTC compound, 66-622 folding.
Stem: Tec Cursus, 0 deg, 1/18", diam. 35mm, ext 50mm.
Handlebar: Tec Cursus rise double butted AL7050, width 780mm, diam. 35mm, 20mm rise, 9 deg backsweep.
Grip: T-One Rock T-GP34 single lock grip, TPR, Plastic inner body, aluminium clamp.
Seatpost: Fox Transfer Factory, diam. 31.6mm, internal cable routing, travel 150 mm (Large Frame).
Saddle: Fi'zi:k Taiga S-Alloy Rails.
Pedals: Fasten NW-91K
Motor Unit: Shimano Steps E-8000 w/Shimano Drive Unit DU-E8000 w/630Wh Battery w/34T SRAM XSYNC2 chainring, w/speed sensor, w/Shimano Cycle Computer SC-E8000.
